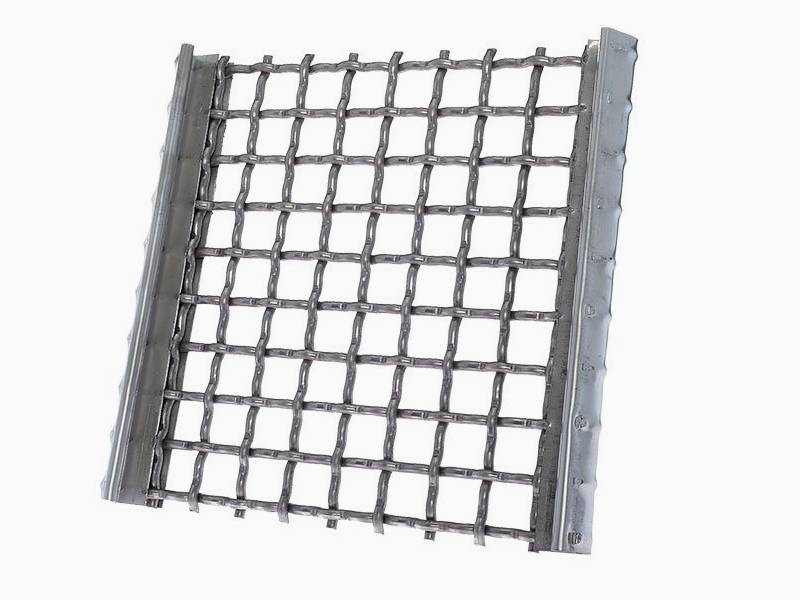

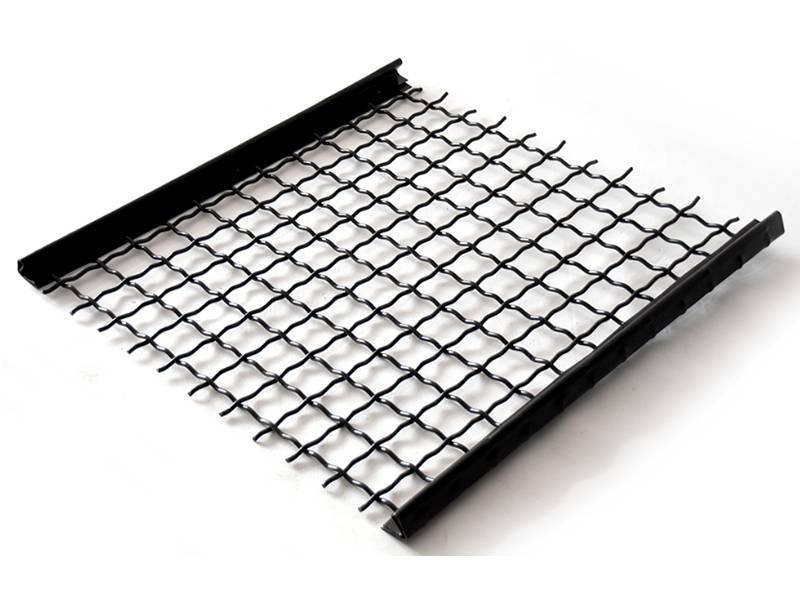

Square Wire Mesh – Great Vibrating Screen Mesh with Robust Construction

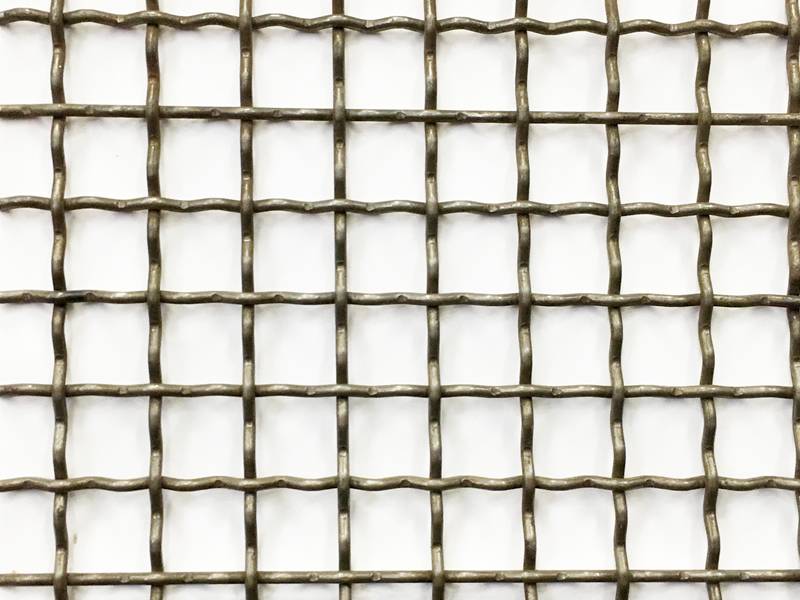

Square Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries. Typically, it is made of wires of the same diameter that are crimped to form precise square openings and achieve maximum rigidity. Its high tensile strength, excellent vibration resistance and long service life make it a perfect choice for obtaining accurate screening results and services at best price.

Both high carbon steel and stainless steel wires are available
Flat top screens, double crimp screens and lock crimp screens are available
Excellent wear resistance and long service life
Special discount for large orders and a wide range of promotion campaigns

Contact Now Woven Wire Mesh Catalog

Weaving Types

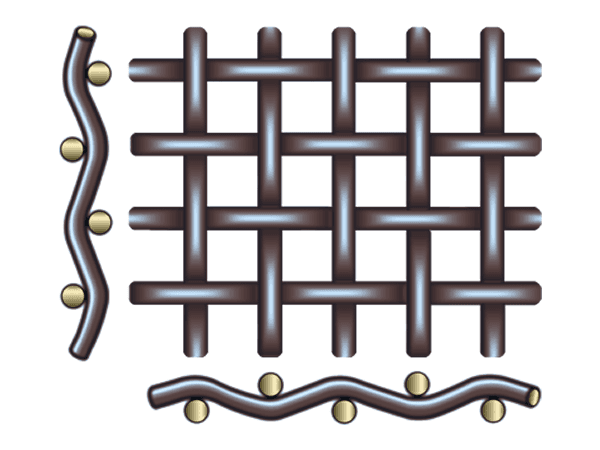

Double Crimp Wire Mesh

Double crimp wire mesh is manufactured with pre-crimped wires to obtain precise screening apertures and achieve maximum rigidity. Generally, it works well in conditions where materials are not sticky or materials with a small tendency to peg or wedge.

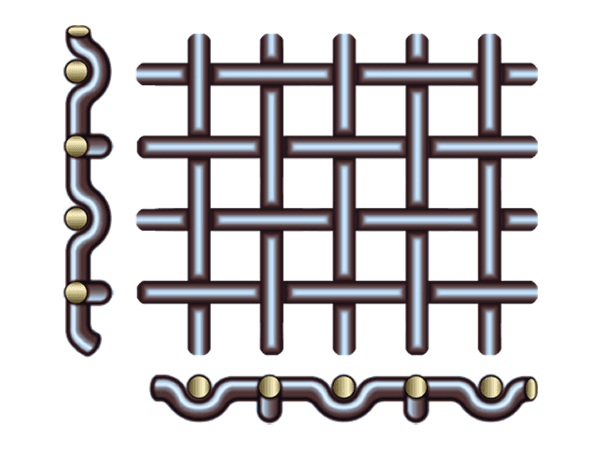

Flat Top Wire Mesh

Flat top wire mesh is manufactured with wires crimped on one side only to create a flat surface, thus enhancing its durability and allowing bigger apertures with high precision. It is generally used for coarse mineral screening.

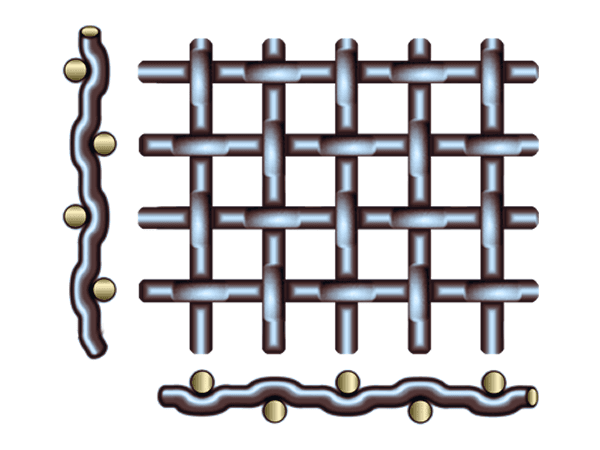

Lock Crimp Wire Mesh

Double crimp wire mesh is manufactured with pre-crimped wires to obtain precise screening apertures and achieve maximum rigidity. Generally, it works well in conditions where materials are not sticky or materials with a small tendency to peg or wedge.

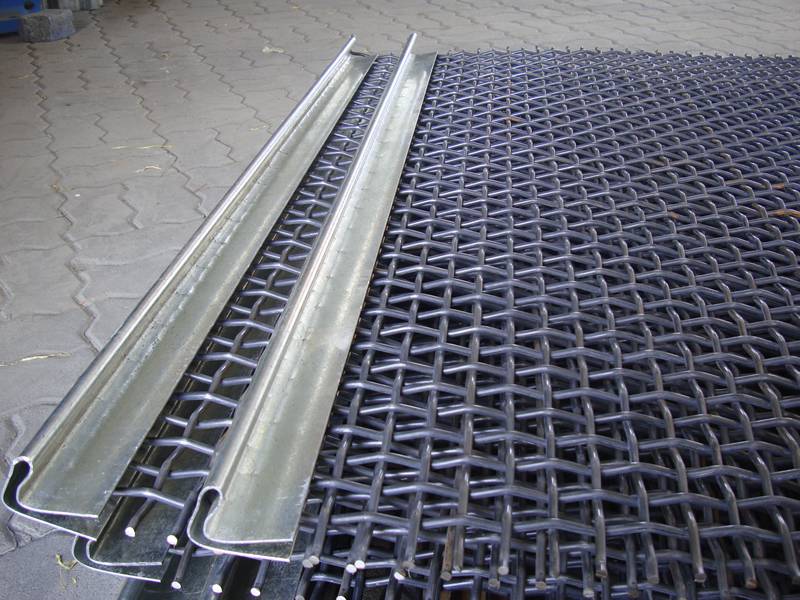

Edge Types

Plain hooked edge

Reinforced shroud edge

Double folded reinforced shroud edge

End tension reinforced shroud edge

The picture shows the diagram of mining screen inside reinforce formed edge

Inside reinforced formed edge

Welded bent plate edge

Specification

Width: up to 2 m or upon request.
Length: 30 m or upon request.

SEE LESS

Aperture	Light Duty			Medium Duty			Heavy Duty
Aperture	Wire Diameter	Weight	Open Area	Wire Diameter	Weight	Open Area	Wire Diameter	Weight	Open Area
mm	mm	kg/m²	%	mm	kg/m²	%	mm	kg/m²	%
2.0	–	–	–	–	–	–	1.37	7.1	35
3.2	–	–	–	2.00	9.9	37	2.50	14.1	31
4.0	2.00	8.50	44	2.50	12.2	38	3.05	16.8	32
5.0	2.00	7.80	51	2.50	16.6	44	3.05	14.7	38
5.6	2.50	9.80	48	3.05	13.7	41	4.00	21.2	34
6.4	2.50	8.89	51	3.05	12.6	46	4.00	19.6	38
6.8	2.50	9.00	51	3.05	10.0	44	4.00	19.7	37
7.1	2.50	8.80	55	3.05	11.9	48	4.00	18.3	41
8.0	2.50	10.80	54	4.00	16.9	44	5.00	24.4	38
9.0	3.05	9.80	55	4.00	15.6	48	5.00	22.7	44
10.0	3.05	9.10	58	4.00	14.5	51	5.00	21.2	44
11.2	3.05	10.40	54	5.00	19.6	48	5.60	28.6	44
12.5	4.00	12.30	57	5.00	18.1	51	5.60	20.0	47
14.0	4.00	16.70	54	5.00	20.0	51	6.80	24.6	48
16.0	5.00	15.10	58	5.60	19.5	56	6.80	22.6	51
18.0	5.00	14.50	58	6.80	20.7	55	7.10	25.0	51
20.0	5.60	14.00	61	6.80	19.2	58	7.10	24.0	54
22.0	5.60	17.60	61	7.10	21.5	57	8.00	26.7	54
25.0	6.80	16.10	64	7.10	20.1	60	8.00	24.6	57
28.0	7.00	14.70	63	8.00	19.0	61	9.00	27.8	57
32.0	8.00	20.60	64	9.00	26.0	60	10.00	30.4	58
38.0	8.00	18.70	67	9.00	28.1	64	10.00	27.9	61
40.0	9.00	21.00	67	10.00	25.4	64	11.20	31.1	61
45.0	9.00	19.50	69	10.00	23.4	67	11.20	28.4	64
50.0	10.00	23.20	69	11.20	26.0	67	12.50	31.8	64
56.0	10.00	19.20	72	11.20	28.7	69	12.50	29.0	67
63.0	10.00	17.40	75	11.20	24.5	72	12.50	25.1	70
76.2	10.00	14.80	78	11.20	16.0	75	12.50	20.0	73
80.0	10.00	16.00	79	11.20	17.5	72	12.50	21.5	75
90.0	10.00	14.00	81	11.20	15.7	79	12.70	19.4	77
100.0	10.00	10.00	82	11.20	14.3	81	12.70	17.6	79
Other mesh sizes and types are available upon request.
