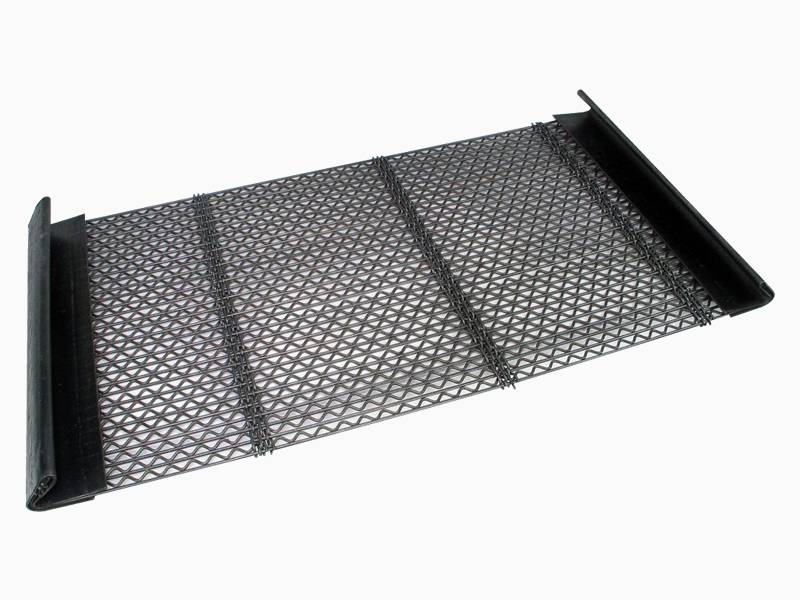

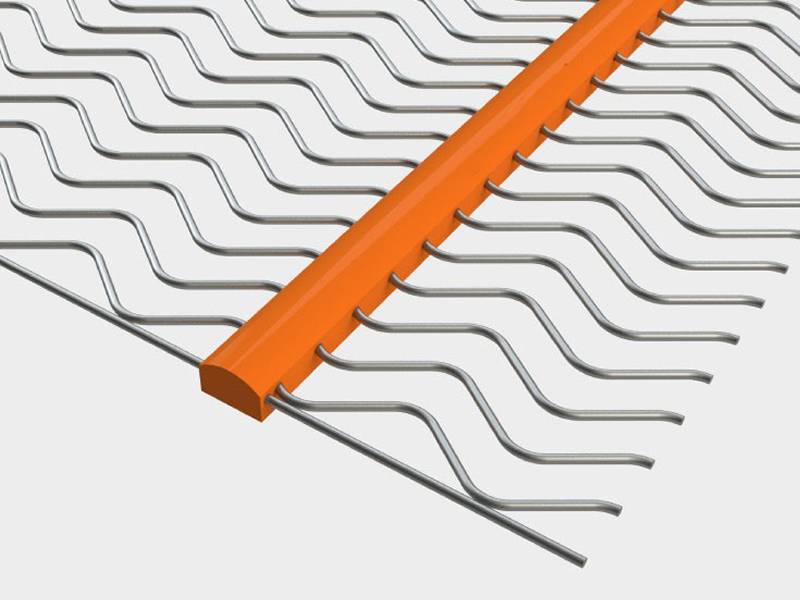

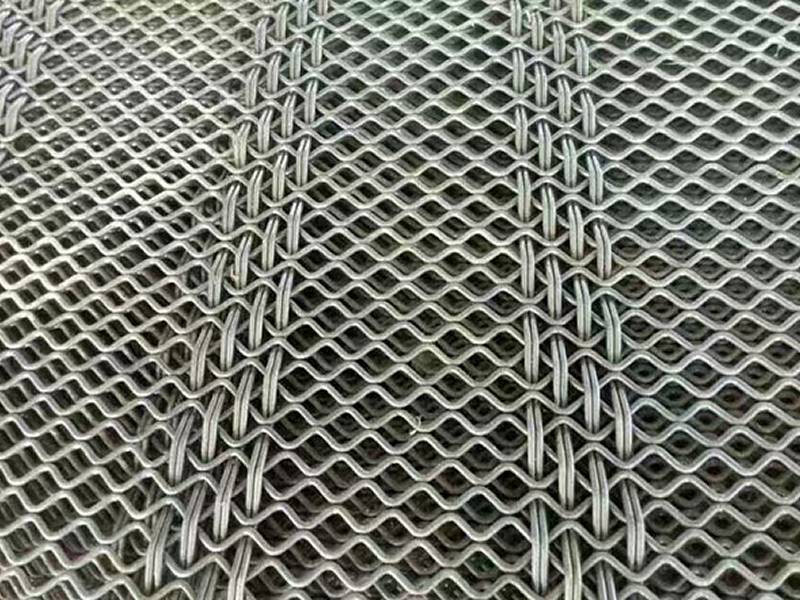

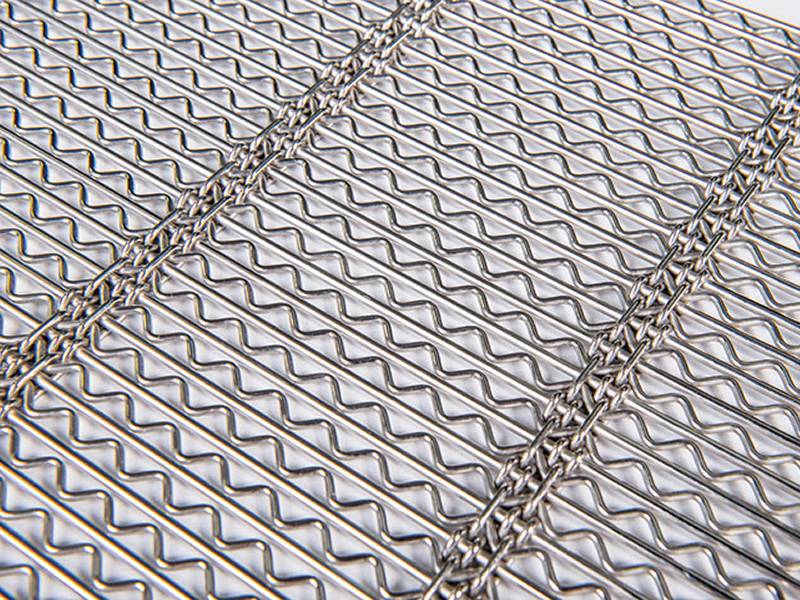

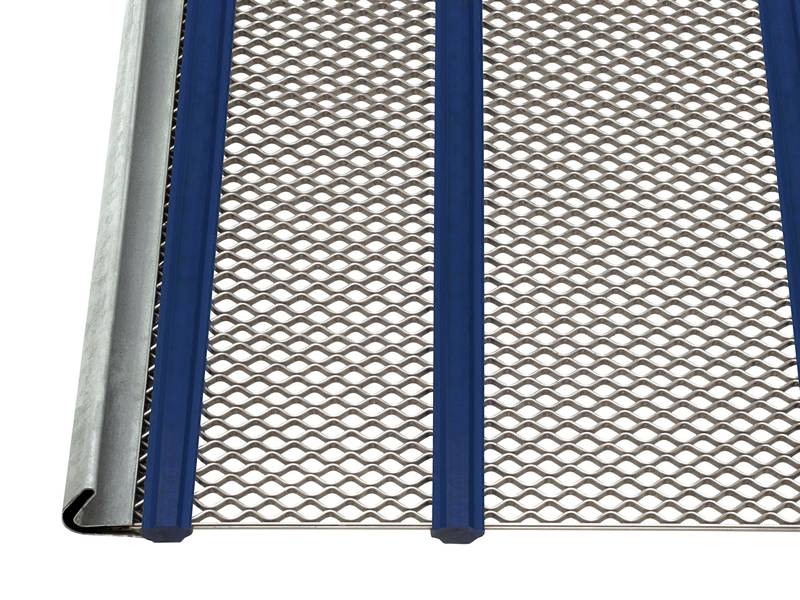

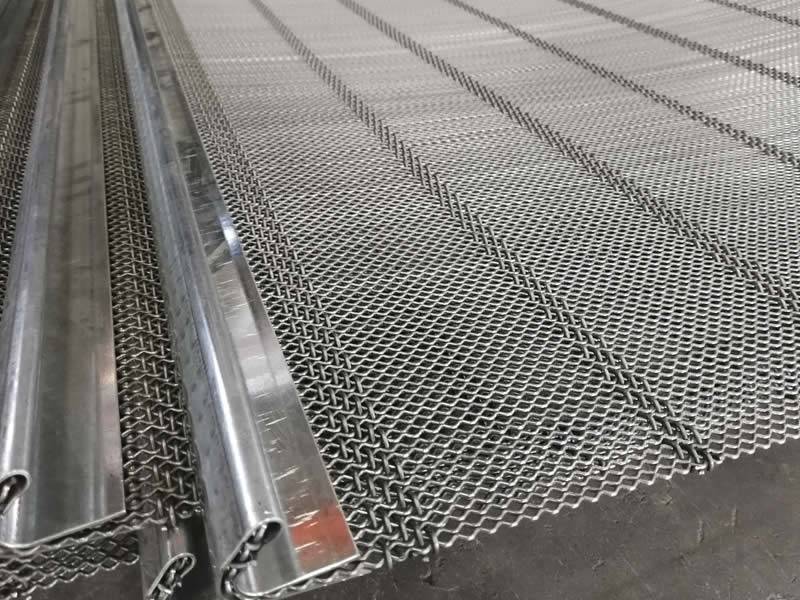

Self-Cleaning screen is a kind of mining screen manufactured with crimped or straight wires, which vibrate independently from one another, shaken by the vibration of the machine and by the weight of materials to be screened. Typically, it is perfect for conditions where materials tend to blinding, pegging or wedging due to their humidity, plasticity or shape. This kind of wire screen delivers higher production output and a longer lifespan.
Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
| Grade | Chemical Composition (%) | ||
|---|---|---|---|
| C | Si | Mn | |
| 45 | 0.42–0.50 | 0.52–0.60 | 0.50–0.80 |
| 50 | 0.47–0.55 | ||
| 55 | 0.52–0.60 | ||
| 60 | 0.57–0.65 | ||
| 65 | 0.62–0.70 | ||
| 70 | 0.67–0.75 | ||
| 65Mn | 0.62–0.70 | 0.90–1.20 | |
| 72A | 0.70–0.75 | 0.15–0.75 | 0.30–0.60 |
| Grade | Chemical Composition (%) | |||
|---|---|---|---|---|
| C | Ni | Mn | Cr | |
| 304 | ≤0.08 | 8.0–10.5 | ≤2.0 | 18.0–20.0 |
| 321 | ≤0.08 | 9.0–12.0 | ≤2.0 | 17.0–19.0 |
| 316 | ≤0.08 | 10.0–14.0 | ≤2.0 | 16.0–18.0 |
| 2205 | ≤0.03 | 4.5–6.5 | ≤2.0 | 21.0–23.0 |
| 2207 | ≤0.03 | 6–8 | ≤1.2 | 24.0–26.0 |
Our woven wire meshes are divided into two categories as shown below.
