Square Self-Cleaning Screen – Ideal Vibrating Screen with Less Plugging

Square Self-Cleaning Screen is our most popular self-cleaning screen. It has a good combination of screening capacity and precision. It can effectively prevent materials to be screened from clogging, blinding and pegging. In addition, its smooth screen surface helps increase the wear life of the screen significantly.

Both carbon steel and stainless steel wires are available
Both polyurethane cross bands and steel wire cross bands are available
Providing precise and effective screening
Preventing materials build-up, pegging and blinding
Special discount for large orders and various promotion campaigns

Contact Now Woven Wire Mesh Catalog

Banding Types

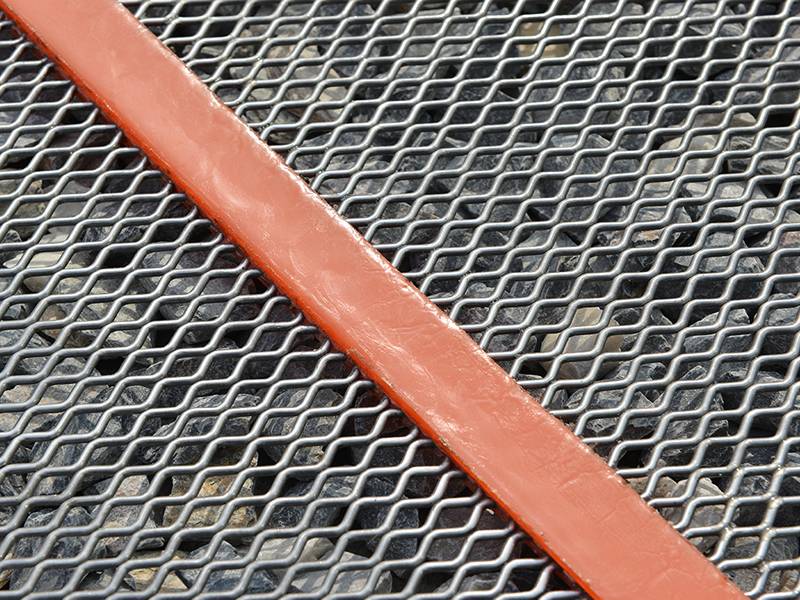

The picture shows the square self-cleaning screen with a polyurethane band.

Square self-cleaning screen with polyurethane bands

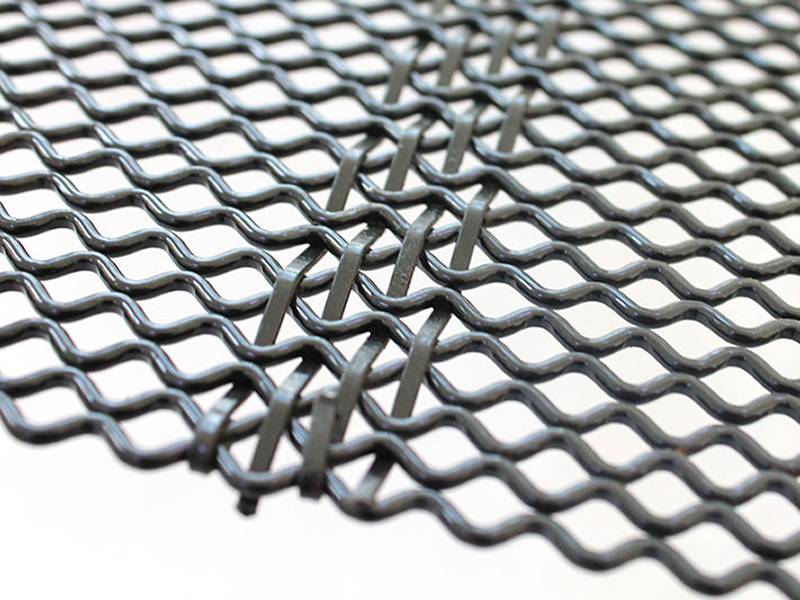

The picture shows the square self-cleaning screen with four steel wire bands.

Square self-cleaning screen with steel wire bands

Edge Types

Plain hooked edge

Reinforced shroud edge

Double folded reinforced shroud edge

End tension reinforced shroud edge

The picture shows the diagram of mining screen inside reinforce formed edge

Inside reinforced formed edge

Welded bent plate edge

Specification

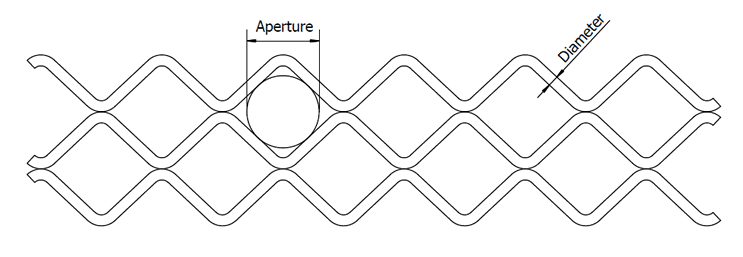

The picture shows the aperture and diameter of the square self-cleaning screen.

Square self-cleaning screen diagram

SEE LESS

Aperture (mm)	Wire Diameter (mm)	Weight (kg/m²)	Open Area (%)
1.50	1.20–1.60	4.7–6.8	31–38
1.75	1.20–1.25	4.5–4.6	40
2.00	1.20–1.60	4.3–6.2	37–43
2.50	1.20–2.00	3.9–8.2	35–48
3.00	1.20–2.00	3.6–7.8	40–52
3.50	1.20–2.00	3.3–7.3	42–56
4.00	1.20–2.00	3.1–6.9	45–58
4.50	1.20–2.50	2.9–9.2	40–62
5.00	1.20–2.80	2.7–11.0	41–65
5.50	1.20–2.50	3.7–8.1	48–61
6.00	1.50–2.80	3.4–9.0	48–64
6.50	1.50–3.15	3.3–10.3	47–66
7.00	2.00–3.15	4.8–9.8	49–61
7.50	2.00–3.15	4.6–9.4	52–62
8.00	2.00–3.15	4.5–9.1	53–63
8.50	2.50	6.1	61
9.00	2.00–3.15	4.1–8.5	56–67
9.50	2.50–3.15	5.6–8.2	57–63
10.00	2.00–3.15	3.7–8.0	59–69
10.50	2.50–3.15	5.0–7.7	60–66
11.00	2.00–3.15	3.5–7.5	61–72
11.50	2.50–2.80	5.2–6.1	64–66
12.00	2.00–4.00	3.3–10.8	57–73
12.50	2.50–4.00	4.7–10.6	58–69
13.00	2.00–4.00	3.1–10.4	59–75
13.50	2.80	5.4	68
14.00	2.00–4.00	3.0–9.6	61–76
14.50	2.50–4.00	4.1–9.7	62–73
15.00	2.50–4.00	4.0–9.2	63–74
15.50	3.00–3.15	5.6–5.9	69–70
16.00	3.00–4.00	5.4–8.9	64–71
17.00	2.00–4.00	3.7–8.6	66–76
18.00	3.00–4.00	5.0–8.3	67–73
19.00	2.80–4.00	4.2–7.9	68–76
20.00	2.50–4.00	3.2–7.6	69–79
21.00	4.00	7.2	71
22.00	2.50–4.00	3.0–7.1	72–80
23.00	4.00	6.8	73
24.00	4.00	6.7	74
25.00	4.00–5.00	6.4–9.3	70–74
26.00	4.00–5.00	6.1–9.2	71–75
27.00	4.00	6.0	76
28.00	3.00–4.00	3.5–5.8	77–82
29.00	4.00	5.6	77
30.00	3.00–4.00	3.3–5.6	78–83
32.00	4.00	5.3	79
35.00	4.00–5.00	4.8–7.3	77–81
40.00	4.00–5.00	4.3–6.6	79–83
44.00	4.00	4.00	84
