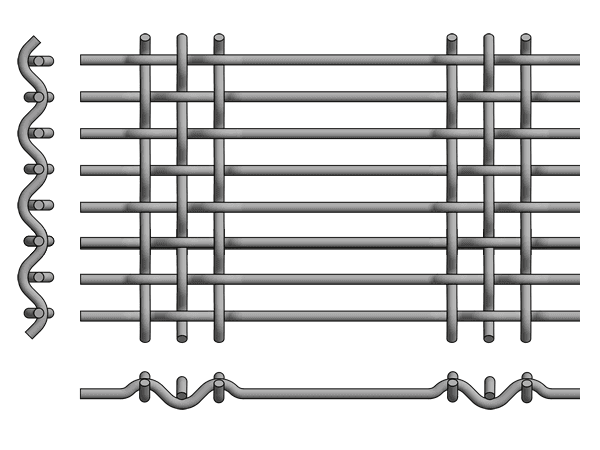

Slotted flat wire mesh
Slotted flat wire mesh adopts indistinctly crimped and flat undulated wires which tend to maintain a flat work surface. It employs thick diameter or double wires to achieve greater resistance to heavy materials.

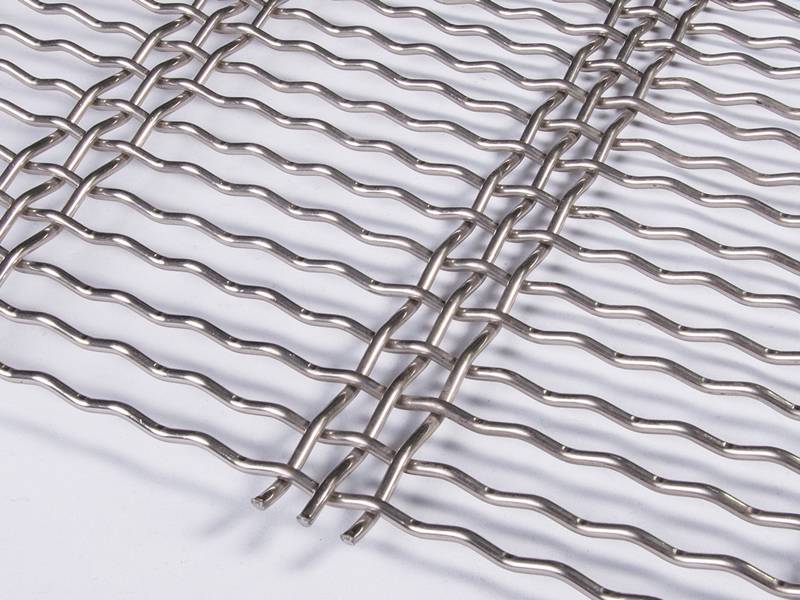

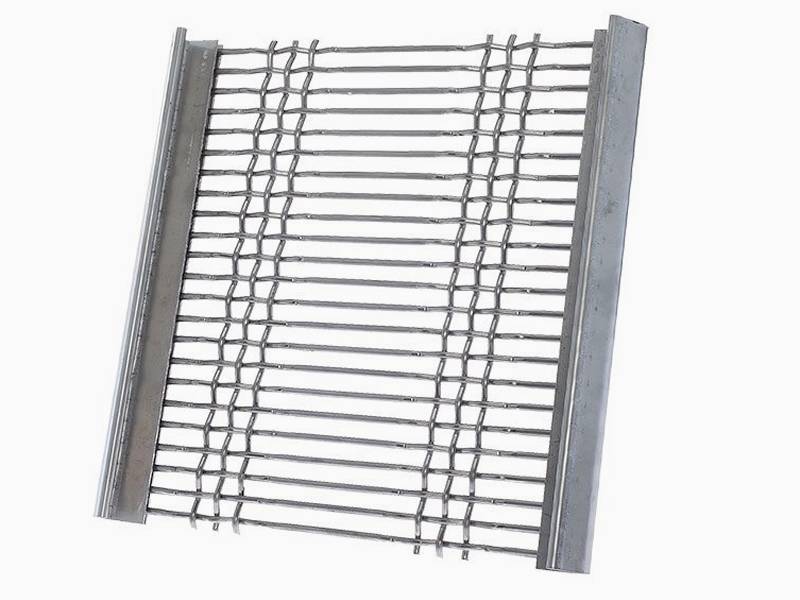

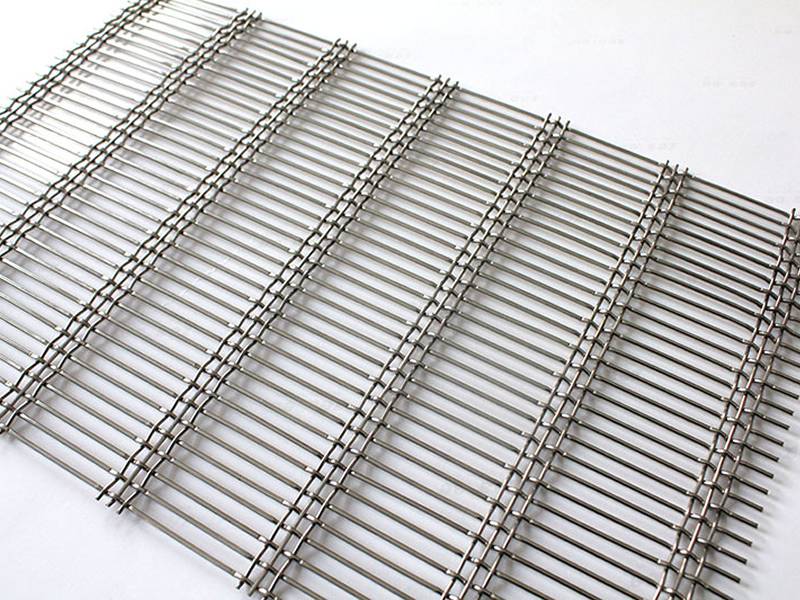

Slot Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries. Typically, it is made of wires of the same diameter that are crimped to form precise apertures. As such, slot wire mesh has a larger open area, a higher throughout and a better self-cleaning effect than square wire mesh.
| Aperture (mm) | Wire Diameter (mm) | Weight (kg/m2) | Open Area (%) |
|---|---|---|---|
| 1.50 × 50.00 | 1.25 | 4.12 | 53 |
| 2.00 × 50.00 | 1.25 | 3.56 | 60 |
| 2.50 × 50.00 | 1.25 | 3.15 | 65 |
| 2.50 × 50.00 | 1.60 | 4.77 | 59 |
| 3.00 × 50.00 | 1.60 | 3.95 | 63 |
| 3.50 × 50.00 | 1.60 | 3.97 | 67 |
| 4.00 × 50.00 | 2.00 | 5.41 | 64 |
| 5.00 × 50.00 | 2.00 | 4.77 | 69 |
| 5.00× 60.00 | 2.50 | 6.81 | 64 |
| 6.00 × 50.00 | 2.00 | 4.29 | 72 |
| 6.00 × 60.00 | 2.80 | 7.50 | 65 |
| 7.00 × 60.00 | 3.15 | 8.45 | 65 |
| 8.00 x 60.00 | 3.15 | 7.85 | 68 |
| 9.00 x 60.00 | 3.15 | 7.33 | 70 |
| 10.00 x 60.00 | 3.15 | 6.89 | 72 |
| 10.00 x 60.00 | 4.00 | 10.55 | 67 |
| 12.00 x 60.00 | 3.15 | 6.17 | 75 |
| 12.00 x 60.00 | 4.00 | 9.50 | 70 |
| Other mesh sizes and types are available upon request. | |||
